Refractory Insulation for Optimal Performance

Exploring Refractory Insulation Types in Fired Heaters

Introduction:
In the realm of fired heaters, selecting the right refractory insulation is paramount to ensure efficient operations and safeguard against high temperatures. The proper choice of refractory insulation plays a vital role in maximizing the performance and efficiency of Fired Heaters. This article delves into various refractory insulation types commonly used in Fired Heaters, highlighting their attributes, applications, and benefits while keeping in mind the utilization of HeaterSIM software for optimal performance.

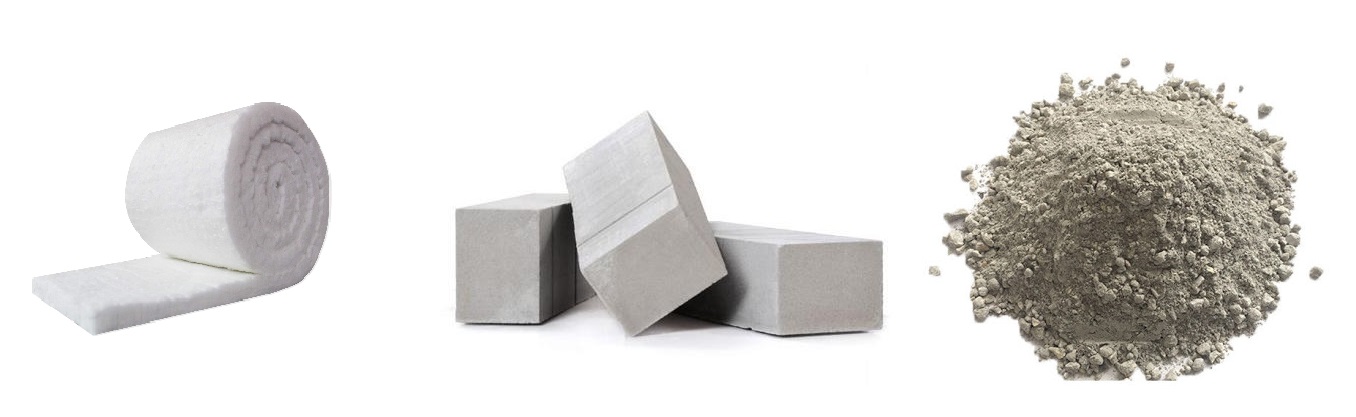

Refractory Insulation inside API 560 Fired Heater

Typical Refractory Materials for API 560 Fired Heaters


1. Ceramic Fibre Insulation:
Ceramic fibre insulation, well-suited for Fired Heaters, comprises refractory ceramic fibres with low thermal conductivity and exceptional heat resistance. Recognized for its lightweight nature, ceramic fibre insulation delivers superior insulation properties, including high-temperature stability, low heat storage, and rapid heat-up/cool-down capabilities. Fired Heaters often employ ceramic fibre insulation in radiant sections, stacks, and ducts, promoting enhanced energy efficiency and improved performance.

Q = (k × A × ΔT) / L

Where:
  Q = Heat transfer rate (W)
  k = Thermal conductivity of the insulation material (W/mK)
  A = Surface area (m²)
  ΔT = Temperature difference (°C)
  L = Thickness of the insulation (m)



2. Refractory Bricks:
Refractory bricks, commonly referred to as fire bricks, are a stalwart choice for Fired Heaters due to their excellent thermal and mechanical characteristics. Constructed from dense, heat-resistant materials like fire clay, high-alumina, or silica, these bricks provide exceptional insulation, high-temperature stability, and resistance to thermal shock. Furnace walls, burner blocks, and other high-heat areas in Fired Heaters benefit from the superior performance of refractory bricks.

3. Insulating Fire Bricks:
Designed to reduce heat loss in Fired Heaters, insulating fire bricks are lightweight refractory bricks boasting low thermal conductivity. Manufactured from materials like lightweight aggregates, alumina, and silica, these bricks offer impressive insulation properties. Areas in Fired Heaters that demand precise temperature control and energy efficiency, such as furnace linings and hot face insulation, are ideal for insulating fire bricks.

4. Ceramic Fibre Modules:
Ceramic fibre modules consist of pre-fabricated units comprising ceramic fiber blankets or boards held together by anchoring systems. Their easy installation, coupled with excellent insulation properties, makes them a popular choice in Fired Heaters. Ceramic fiber modules deliver advantages like reduced installation time, improved energy efficiency, and heightened thermal shock resistance. Fired Heater components such as radiant sections, walls, and roofs witness enhanced performance through the incorporation of ceramic fiber modules.

5. Castable Refractories:
Castable refractories, known as monolithic refractories, present versatility in Fired Heaters. Comprising refractory aggregates, binders, and additives, these refractories can be poured or gunned into various shapes and configurations. Castable refractories offer exceptional thermal insulation and can be tailored to meet specific Fired Heater requirements. Complex geometries within Fired Heaters, including heater floors, burner blocks, and custom-shaped areas, benefit from the adaptable nature of castable refractories.



Summary:
Choosing the right refractory insulation is pivotal to optimize the performance and efficiency of Fired Heaters. Ceramic fibre insulation, refractory bricks, insulating fire bricks, ceramic fibre modules, and castable refractories each offer unique attributes, such as high-temperature stability, low thermal conductivity, thermal shock resistance, and energy efficiency.

Integrating advanced simulation tools like HeaterSIM software facilitates the selection and application of refractory insulation in Fired Heaters, enhancing thermal insulation, reducing heat loss, and ensuring safe, reliable, and optimized operation of Fired Heaters.
